Description And Features

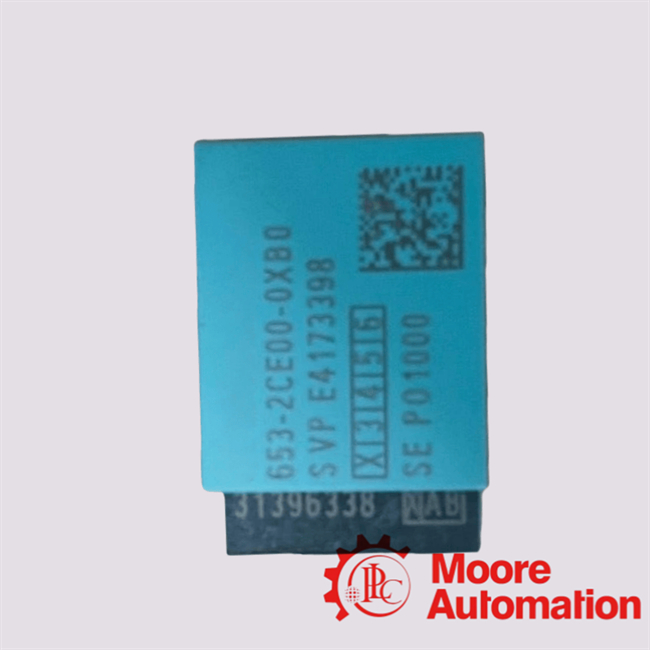

 The The 6ES7653‑2CE00‑0XB0 is a system expansion card manufactured by Siemens, under the SIMATIC PCS 7 family.It is designed for use with the SIMATIC PCS 7 CPU 410‑5H

controller.It enables up to 1,000 process objects (“PO 1000”) when installed, thereby increasing the capacity of the system.Allows expansion of a PCS 7

 automation system by adding capacity for process objects (which could represent e.g. signals, tags

or internal process variables) in a process‑control environment.

Frequently Asked Questions About 6ES7653-2CE00-0XB0

Q1: What exactly does “up to 1,000 process objects” mean?

It means this expansion card allows the associated CPU/system to address/configure up to 1,000 process objects (PO). These objects could be I/O channels,

internal variables, or other process‑control items within the PCS 7 architecture.If you install

fewer or already have existing cards, you must ensure the total POs in use

 don’t exceed the supported maximum when using this card.

Q2: Which controller/CPU do I need this card for?

The documentation states it is suitable for the PCS 7 CPU410‑5H.You should check the CPU’s technical data sheet

that defines support for expansion cards and the number of process objects allowed.

Q3: Is it compatible with other Siemens CPUs or systems?

The primary listing mentions CPU410‑5H; compatibility with other CPUs is not guaranteed by the publicly listed specs.

When in doubt, check Siemens’s official compatibility documentation or ask their technical support.

Also check version numbers, firmware/firmware support, and system

architecture (PCS 7 version) for full compatibility.

Q4: What if my system uses more than 1,000 process objects?

If your system demands more than 1,000 POs, you might need a different expansion card (with higher PO capacity)

or a system architecture upgrade.There might be other variants (for example “PO 500”) or higher

capacity cards in the Siemens lineup.(For example the variant

 “6ES7653‑2CC00‑0XB0 PO 500” was listed inone

vendor’s database)
