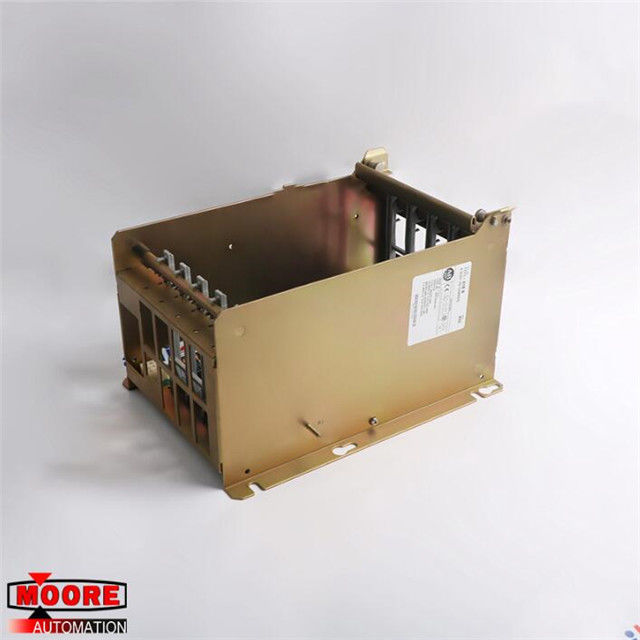

1771-A1B 1771-A1B Allen Bradley AB 4 Slot Rak Pemasangan Chassis I / O
⇒ Klik di sini untuk harga yang bagus 1771-A1B
Merek / Pabrikan | AB / AS |
Nomor bagian |
1771-A1B |
Nomor Bagian Alternatif | 1771-A1B |
Deskripsi | SERVO MOTOR |
Dimensi |
31.5x23x19.5cm |
Bobot | 3,6 kg |
Rincian Produk
The 1771-A1B is an AB PLC-5 Chassis . 1771-A1B adalah Chassis AB PLC-5. The AB 1771-A1B chassis is the backbone of every AB PLC-5 programmable controller system. Sasis AB 1771-A1B adalah tulang punggung dari setiap sistem pengontrol yang dapat diprogram AB PLC-5. This chassis provides a communication path between various I/O modules and either the controller or the I/O adapter module. Chasis ini menyediakan jalur komunikasi antara berbagai modul I / O dan baik controller atau modul adaptor I / O. 1771-A1B is a universal and compact enclosure for the processor, power-supply modules, remote and extended-local I/O adapter modules, and I/O modules. 1771-A1B adalah penutup universal dan kompak untuk prosesor, modul catu daya, modul adaptor I / O lokal dan jarak jauh, dan modul I / O. 1771-A1B chassis has 4 slots for mounting various modules. Sasis 1771-A1B memiliki 4 slot untuk pemasangan berbagai modul. The far-left slot of 1771-A1B chassis is reserved for either the processor or adapter module. Slot paling kiri dari sasis 1771-A1B dicadangkan untuk modul prosesor atau adaptor. The other slots in the chassis are compatible with communication modules, I/O modules, and power-supply modules. Slot lain dalam sasis kompatibel dengan modul komunikasi, modul I / O, dan modul catu daya. It is crucial to follow the compatibility tables for each PLC-5/1771 module. Sangat penting untuk mengikuti tabel kompatibilitas untuk setiap modul PLC-5/1771. Please note the 1771-A1B is part of series B. Power supplies 1771-P1, -P2, -P7 and -PS7 can be mounted on the left side plate of the 1771-A1B chassis. Harap dicatat bahwa 1771-A1B adalah bagian dari seri B. Catu daya 1771-P1, -P2, -P7 dan -PS7 dapat dipasang di pelat sisi kiri sasis 1771-A1B.
The 1771-A1B chassis is designed for panel mount installation. Sasis 1771-A1B dirancang untuk pemasangan di panel. 1771-A1B chassis can receive power through processors with integral power supplies that provide 2 to 4 amps, power supply modules that provide 3 to 8 amps, and external power supplies that provide 6.5 to 16 amps. Sasis 1771-A1B dapat menerima daya melalui prosesor dengan catu daya integral yang menyediakan 2 hingga 4 amp, modul catu daya yang menyediakan 3 hingga 8 amp, dan catu daya eksternal yang menyediakan 6,5 hingga 16 amp. The largest back-plane current for the 1771-A1B is 16 amps operating at 5 Volts DC. Arus back-plane terbesar untuk 1771-A1B adalah 16 amp yang beroperasi pada 5 Volt DC. The 1771-A1B chassis must be connected to a central ground bus via grounding studs situated on the chassis itself. Sasis 1771-A1B harus disambungkan ke bus ground sentral melalui grounding stud yang terletak di sasis itu sendiri. The chassis' power supply is configured via the configuration jumper. Catu daya sasis dikonfigurasikan melalui jumper konfigurasi. The jumper has two positions: "N" - position for external power supply, and "Y" - position for power-supply module or processor with and an integral power supply. Jumper memiliki dua posisi: "N" - posisi untuk catu daya eksternal, dan "Y" - posisi untuk modul atau prosesor catu daya dengan dan catu daya integral. 1771-A1B chassis cannot be powered with both a power-supply module and an external power supply at the same time. Casing 1771-A1B tidak dapat diberdayakan dengan modul catu daya dan catu daya eksternal secara bersamaan.
