1771-KX1 1771KX1 Allen Bradley AB PLC 5 Modul Antarmuka Komunikasi
⇒ Klik di sini untuk harga yang bagus 1785-L30B
Merek / Pabrikan | AB / AS |
Nomor bagian |
1785-L30B |
Nomor Bagian Alternatif | 1785-L30B |
Deskripsi | Modul Prosesor 2.3AMP AT 5VDC 2 DH + / REMOTE I / O CHANNELS |
Dimensi | 5.0cm x 10.3cm x 18.9cm |
Bobot | 0,5 kg |
Rincian Produk
Programmable controller 1785-L30B is the main part of each enhanced control system based on the Allen Bradley PLC-5 series. Programmable controller 1785-L30B adalah bagian utama dari setiap sistem kontrol yang ditingkatkan berdasarkan seri Allen Bradley PLC-5. The 1785-L30B merges local, extended and remote I/O modules on various types of communication interfaces into one control system suited for various processes. The 1785-L30B menggabungkan modul I / O lokal, diperluas dan jauh pada berbagai jenis antarmuka komunikasi menjadi satu sistem kontrol yang cocok untuk berbagai proses. 1785-L30B has two built-in ports. 1785-L30B memiliki dua port bawaan. Ports are marked as channel 1A and channel 1B, and both can function as remote I/O scanners, remote I/O adapters and DH+ communication interfaces. Port ditandai sebagai saluran 1A dan saluran 1B, dan keduanya dapat berfungsi sebagai pemindai I / O jarak jauh, adaptor I / O jarak jauh, dan antarmuka komunikasi DH +. DH+ communication can work both for remote programming and monitoring of 1785-L30B, and for creating a peer-to-peer communication network between the other PLC-5 controllers. Komunikasi DH + dapat bekerja baik untuk pemrograman jarak jauh dan pemantauan 1785-L30B, dan untuk menciptakan jaringan komunikasi peer-to-peer antara pengontrol PLC-5 lainnya.

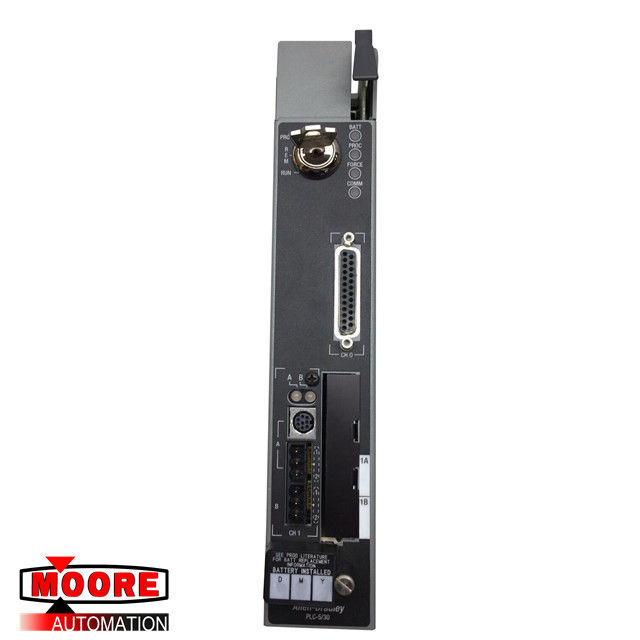

Remote I/O connection is used for real-time data exchange between the controller and I/O, operator interface, and other devices. Koneksi I / O jarak jauh digunakan untuk pertukaran data waktu-nyata antara pengontrol dan I / O, antarmuka operator, dan perangkat lainnya. On the front panel of the 1785-L30B controller, there is a 25-pin connector marked channel 0. This is an optically isolated EIA RS232C port. Pada panel depan pengontrol 1785-L30B, terdapat konektor 25-pin bertanda saluran 0. Ini adalah port EIA RS232C yang terisolasi secara optik. Channel 0 supports ASCII and DF1 full and half-duplex master protocols and half-duplex slave protocols. Saluran 0 mendukung protokol master ASCII dan DF1 full dan half-duplex dan half-duplex slave. On the front panel, there is a green channel 0 communication indicator light. Di panel depan, ada lampu indikator komunikasi 0 saluran hijau. Near channel 0, there is an 8-pin mini-DIN connector marked as channel 1A, and a DH+ programming terminal connection parallel to it. Dekat saluran 0, ada konektor mini-DIN 8-pin yang ditandai sebagai saluran 1A, dan koneksi terminal pemrograman DH + yang paralel dengannya. There are two three-pin connectors that serve as communication ports. Ada dua konektor tiga pin yang berfungsi sebagai port komunikasi.
These three pin connectors are used for channels 1A and 1B, which can be configured as remote I/O scanners, remote I/O adapters or DH+ communication ports. Ketiga konektor pin ini digunakan untuk saluran 1A dan 1B, yang dapat dikonfigurasi sebagai pemindai I / O jarak jauh, adaptor I / O jarak jauh atau port komunikasi DH +. Both channel 1A and channel 1B on 1785-L30B can function as remote I/O scanners or remote I/O adapter communications. Saluran 1A dan saluran 1B pada 1785-L30B dapat berfungsi sebagai pemindai I / O jarak jauh atau komunikasi adaptor I / O jarak jauh. Remote I/O Scanner Mode reads and writes I/O information between a controller and remote I/O device. Mode Pemindai I / O jarak jauh membaca dan menulis informasi I / O antara pengontrol dan perangkat I / O jarak jauh. In this mode, 1785-L30B is a supervisory controller for other controllers that are in adapter mode and remote I/O adapter modules. Dalam mode ini, 1785-L30B adalah pengontrol pengawasan untuk pengontrol lain yang berada dalam mode adaptor dan modul adaptor I / O jarak jauh.
