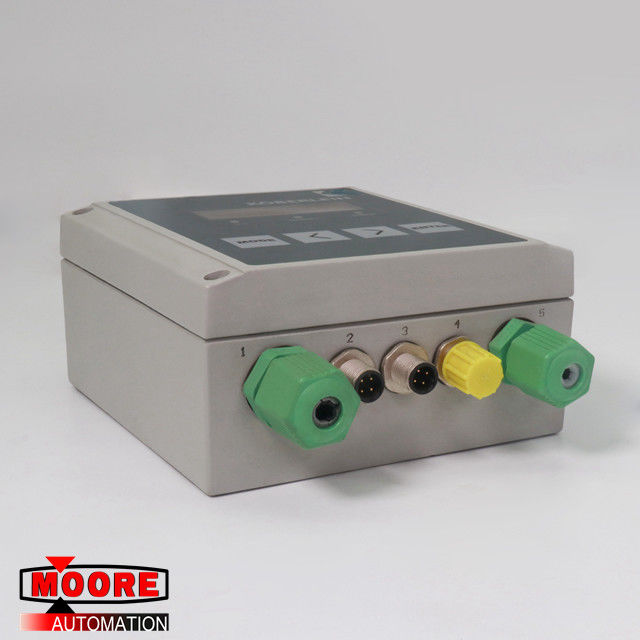

RMA-POWER-BOX 107/230 MODUL KONTROL GETARAN KOBERLEIN
⇒ Klik di sini untuk harga yang bagus RMA-POWER-BOX 107/230
Merek / Pabrikan | KOBERLEIN / AS |
Nomor bagian |
RMA-POWER-BOX 107/230 |
Nomor Bagian Alternatif | RMA-POWER-BOX 107/230 |
Deskripsi | MODUL KONTROL GETARAN |
Dimensi | 14.0cm x 18.0cm x 7.2cm |
Bobot | 0,5 kg |
Rincian Produk
Data Teknis RMA-POWER-BOX 107/230
Tegangan Pengoperasian: 115 / 230V +/- 10% (harus disetel dengan sakelar!)
Frekuensi: 50 .... 60Hz
Konsumsi daya: max.60VA
Rekomendasi Pra-sekering: 2 garis A / karakteristik C
Magnet - Output
tegangan output yang dapat disesuaikan: 15Vss ... 30Vss
frekuensi output yang dapat disesuaikan: 10.00Hz ... 99,99 Hz
Interval frekuensi terkecil: 0,01Hz
daya penghubung maksimum: 50VA
Pemutusan dalam kasus: arus lebih, hubung singkat, derating, sirkuit terbuka
Input
Input „vibration on“: current consumption at 24V DC: approx. Input "getaran aktif": konsumsi saat ini pada 24V DC: kira-kira. 7mA 7mA
Input „Reset“: current consumption at 24V DC: approx. Input "Reset": konsumsi saat ini pada 24V DC: kira-kira. 7mA 7mA
Relay output mengambang:
Beban kontak maksimum 30V DC 0,5A
Suhu lingkungan operasi:
Storage: 0 ... 50°C; Penyimpanan: 0 ... 50 ° C; -25 ... 85°C -25 ... 85 ° C
Pengukuran: W x H x D 140x180x72mm
EMV - Test According toEN55011; EMV - Tes MenurutEN55011; EN61000-3-3 (system perturbation) EN61000-3-3 (gangguan sistem)
Kelas perlindungan: Ι (membumi)
Jenis perlindungan: IP65 (dengan jalur penghubung yang kacau)
