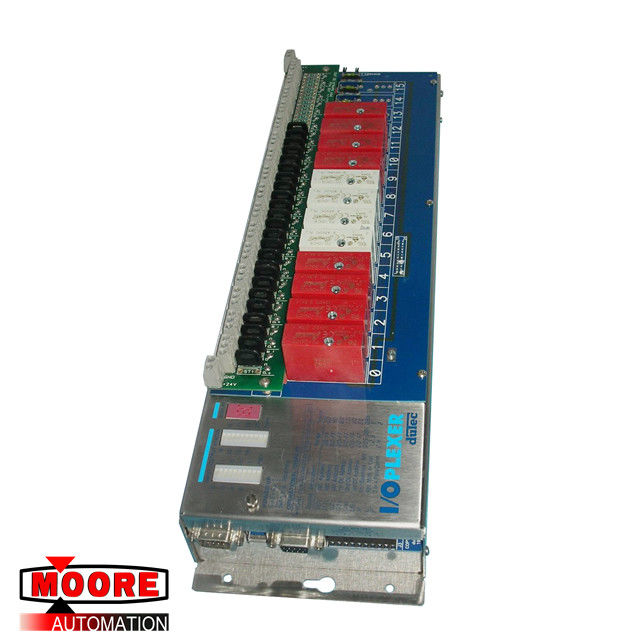

IOP-D DUTEC I / O PLEXER Pengendali I / O Jarak Jauh 16 Saluran
Merek / Pabrikan |
DUTEC / AS |
Nomor bagian |
IOP-D |
Nomor Bagian Alternatif |
IOP-D |
Deskripsi | Pengontrol I / O jarak jauh |
Dimensi | 17,3 cm x 5,0 cm x 3,0 cm |
Bobot | 0,6 kg |
Rincian Produk
The I/O PLEXER is a complete, industrial-grade, remote I/O controller which can operate under the control of a host computer via a serial communications link, or in a STANDALONE mode, with or without supervision. I / O PLEXER adalah pengontrol I / O jarak jauh tingkat industri yang dapat beroperasi di bawah kendali komputer host melalui tautan komunikasi serial, atau dalam mode STANDALONE, dengan atau tanpa pengawasan. By locating I/O PLEXERs near the process, the serial link eliminates the expense of lengthy, noise-prone analog sensor and actuator field wiring. Dengan menempatkan I / O PLEXER di dekat proses, tautan serial menghilangkan biaya sensor analog yang panjang dan rawan kebisingan dan kabel bidang aktuator. Because the I/O PLEXER supports any mix of a large variety of analog and digital I/O signals, the requirements of virtually any process can be accommodated. Karena I / O PLEXER mendukung campuran berbagai macam sinyal I / O analog dan digital, persyaratan dari hampir semua proses dapat ditampung. Omni-isolated I/O modules provide 1,500 volts of isolation protection between each and every I/O line, host computer and power supplies. Modul I / O yang terisolasi Omni menyediakan 1.500 volt perlindungan isolasi antara masing-masing dan setiap jalur I / O, komputer host dan catu daya.
Omni-isolated I/O, and the ability to mix and match individual analog or digital signals* from virtually any sensor or actuator reduces system design, installation and trouble shooting costs, as well as simplifying future maintenance and system expansion. Omni-terisolasi I / O, dan kemampuan untuk mencampur dan mencocokkan sinyal analog atau digital individu * dari hampir semua sensor atau aktuator mengurangi biaya desain sistem, instalasi dan pemecahan masalah, serta menyederhanakan pemeliharaan masa depan dan perluasan sistem. I/O PLEXERs, complete with a built-in wide range power supply, are shipped ready to connect to your sensors, actuators, host's serial port and power. I / O PLEXER, lengkap dengan catu daya rentang bawaan, dikirimkan siap untuk terhubung ke sensor, aktuator, port serial dan daya host. A single I/O PLEXER can handle any mix of 16 analog and/or digital I/O points. I / O PLEXER tunggal dapat menangani campuran 16 titik I / O analog dan / atau digital. With expanders, the number of digital I/O points can be increased by up to 48. An I/O PLEXER network can serve a mix of over 1,000 analog and digital I/O lines. Dengan ekspander, jumlah titik I / O digital dapat ditingkatkan hingga 48. Jaringan I / O PLEXER dapat melayani campuran lebih dari 1.000 jalur I / O analog dan digital.
Operasi Jarak Jauh
There are several dozen third-party HMI/MMI/SCADA software packages that have I/O PLEXER drivers for polling sensor data. Ada beberapa lusin paket perangkat lunak HMI / MMI / SCADA pihak ketiga yang memiliki driver I / O PLEXER untuk polling data sensor. Most have extensive graphics displaying the process, only a few have the capability to transmit control commands to actuators. Sebagian besar memiliki grafik luas yang menampilkan proses, hanya beberapa yang memiliki kemampuan untuk mengirimkan perintah kontrol ke aktuator. The open architecture communication protocol instructions are readily available for those writing their own proprietary software. Petunjuk protokol komunikasi arsitektur terbuka tersedia bagi mereka yang menulis perangkat lunak berpemilik mereka sendiri.
Pengoperasian STANDALONE
Built-in LCFs (Local Control Functions) allow an I/O PLEXER to perform control operations with or without host supervision. LCF internal (Fungsi Kontrol Lokal) memungkinkan I / O PLEXER untuk melakukan operasi kontrol dengan atau tanpa pengawasan host. LCFs include logic gates, analog compare and math, dead-band and PID control, and ladder logic. LCF mencakup gerbang logika, perbandingan analog dan matematika, dead-band dan kontrol PID, dan logika tangga. Because analog and digital modules are available on the same unit, LCFs can perform closed-loop control operations. Karena modul analog dan digital tersedia pada unit yang sama, LCF dapat melakukan operasi kontrol loop tertutup.
Spesifikasi Fisik
Power (standard) 90-264 Vac, 47-440Hz, 30 watts; Daya (standar) 90-264 Vac, 47-440Hz, 30 watt; 3.0A fuse; 3.0A sekering; (optional: 9-18Vdc and 18-36Vdc, 25 watts each) (opsional: 9-18Vdc dan 18-36Vdc, masing-masing 25 watt)
Suhu Operasional 0-60o C
Kelembaban 95% non-kondensasi
