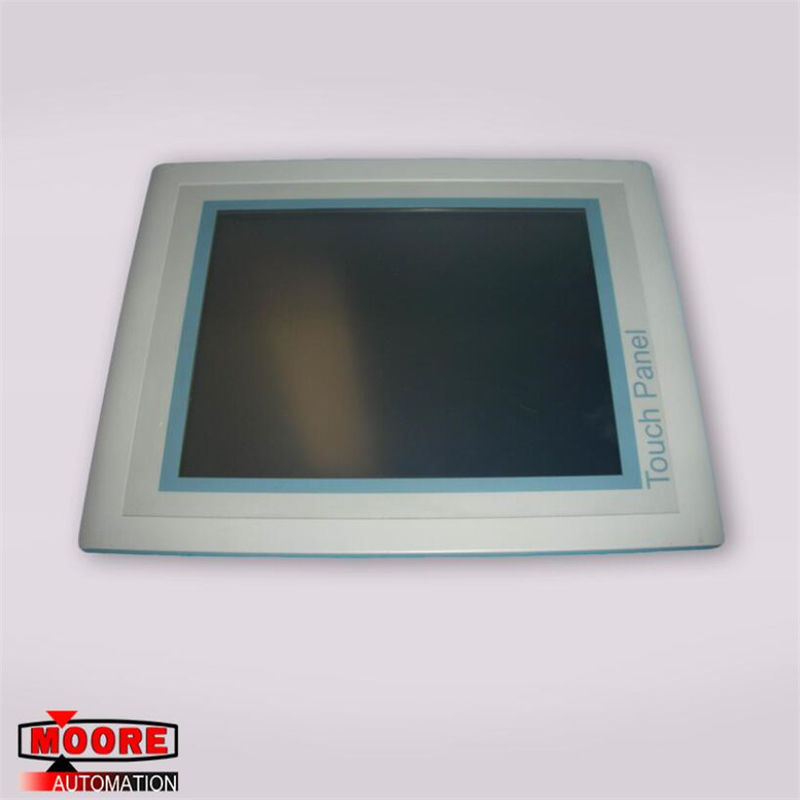

VIPA 62K-JEE0-CB Touch Panel 10.4 "warna TFT, MPI / PROFIBUS
Merek / Pabrikan | VIPA / JERMAN |
Nomor bagian |
62K-JEE0-CB |
Nomor Bagian Alternatif | 62K-JEE0-CB |
Deskripsi | Panel sentuh |
Dimensi | 30,4cm x 23,3cm x 7,1 cm |
Bobot | 0.33kg |
Rincian Produk
The VIPA Touch Panel allows you to visualize and alter operating states and recent process values of a connected PLC. Panel Sentuh VIPA memungkinkan Anda untuk memvisualisasikan dan mengubah status operasi dan nilai proses terbaru dari PLC yang terhubung. The Touch Panel is a compact and modular embedded PC based on Windows CE. Touch Panel adalah PC tertanam yang kompak dan modular berbasis Windows CE. Besides the extensive Windows CE functions the Touch Panel offers varied communication possibilities. Selain fungsi Windows CE yang luas, Touch Panel menawarkan beragam kemungkinan komunikasi. Here the Touch Panel can simply be configured, controlled and remoted. Di sini, Panel Sentuh dapat dengan mudah dikonfigurasikan, dikontrol, dan dibuat ulang.
Windows CE 6.0 Prof.
62K-JEE0-CB: Movicon 11 CE Standard (4096 I / O Bytes)
Prosesor Xscale, 800MHz
Memori kerja 128Mbyte
Memori pengguna 4GB
Memori 3800Mbyte untuk data pengguna
Slot kartu CF-Card II dan MMC / SD
RS232, RS422 / 485, MPI, PROFIBUS DP slave, Ethernet, USB-A dan antarmuka USB-B
Aluminium die casting case yang kuat
Resolusi layar 800 x 600/600 x 800 (64k warna)
Jam yang didukung baterai
Layar sentuh resistif
Pemasangan mudah melalui tuas putar terpadu
Kelas perlindungan IP65 (frontal)
The Touch Panel has got an integrated power supply. Panel Sentuh telah mendapat catu daya terintegrasi. The power supply has to be provided with DC 24V (20.4 ... 28.8V). Catu daya harus dilengkapi dengan DC 24V (20,4 ... 28,8V). For this you find an according DC 24V slot on the bottom side. Untuk ini, Anda menemukan slot DC 24V sesuai di sisi bawah.
The power supply is protected against inverse polarity and overcurrent. Catu daya dilindungi terhadap polaritas terbalik dan arus lebih. The battery for the clock of the Touch Panel is an accumulator with a suitable charging circuit. Baterai untuk jam Panel Sentuh adalah akumulator dengan sirkuit pengisian yang sesuai. This accumulator is maintenance-free and does not need to be exchanged within the life span of the Touch Panel. Akumulator ini bebas perawatan dan tidak perlu dipertukarkan dalam masa pakai Panel Sentuh.
