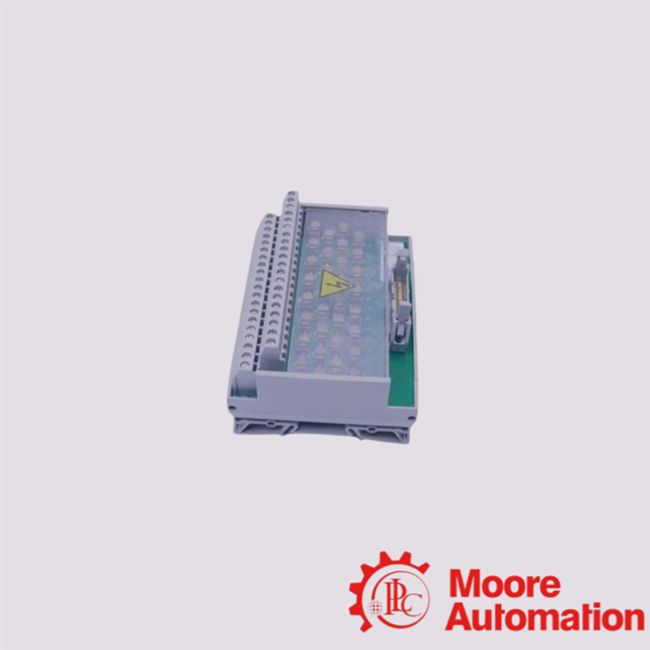

1492-IFM20F-F120A-2 Allen Bradley Circuit Breaker
Specification
| Product Description |
|
The 1492‑IFM20F‑F120A‑2 is a 20-point fusible digital interface module designed to optimally connect ControlLogix/PLC systems to field input devices.
It features built‑in 120 VAC/DC fuse clips, per‑channel blown‑fuse indicators, and extra field terminals to streamline wiring and diagnostics.
|
| More Technical Data |
| Voltage range |
85–132 VAC/DC |
| Current per channel |
2 A max |
| Total module current |
12 A max |
| Fuse size |
5 × 20 mm (fuses not included) |
| Indicators |
Blown‑fuse LED per channel |
| Frequently Asked Questions |
|
1. What fuses do I need?
Use 5 × 20 mm, 2 A fuses rated for 85–132 VAC/DC. Fuse pullers are included; fuses are not.
2. Can I use it with AC and DC input modules?
Yes—supports both 120 VAC and 120 VDC within the stated voltage range .
3. What if one fuse blows—does it interrupt all I/O points?
No. Each channel has its own fuse and LED indicator. Only that channel goes offline while others remain functional .
4. How do I wire it to PLC I/O cards?
Connect the 20‑pin ribbon cable to the PLC module (e.g., 1756‑IA16).
Field side uses screw terminals; COM0/COM1 and +VA/+VB group power bus outputs .
|
