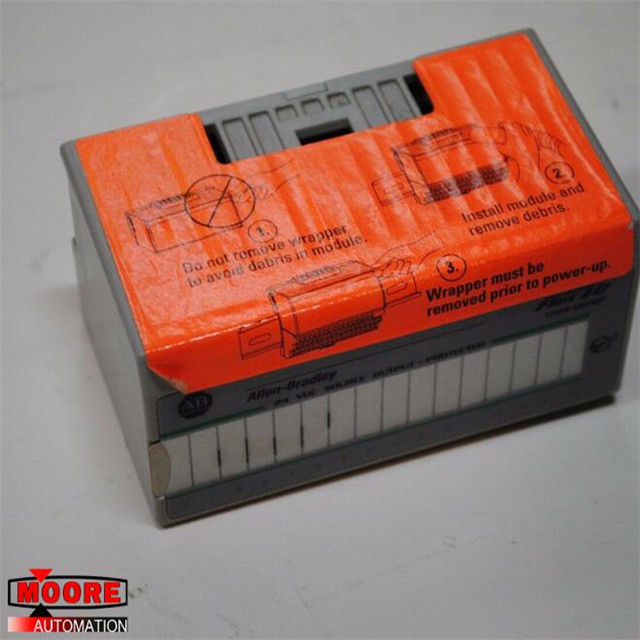

1794-OB16P 1794OB16P Allen Bradley Flex I / O Digital DC Output Modul

1794-OB16P 1794OB16P Allen Bradley Flex I / O Digital DC Output Modul

Rincian Produk:
Tempat asal: Amerika Serikat
Nama merek: AB
Sertifikasi: CO.CQ
Nomor model: 1794-OB16P
Informasi detil
Tempat asal:
Amerika Serikat
Nama merek:
AB
Sertifikasi:
CO.CQ
Nomor model:
1794-OB16P
Tahun pembuatan:
2020
Con 6DS1311-8AEtrol System:
1794-OB16P
Aplikasi:
Pembangkit listrik tenaga nuklir
Lead time:
persediaan
Deskripsi:
AB
Bobot:
£ 4
Informasi Perdagangan
Kuantitas min Order:
1
Harga:
inquiry
Kemasan rincian:
baru dan asli dengan pabrik disegel
Waktu pengiriman:
hari ini
Syarat-syarat pembayaran:
T / T
Menyediakan kemampuan:
10 potong sehari
Deskripsi Produk



1794-OB16P 1794OB16P Allen Bradley Flex I / O Digital DC Output Modul



⇒ Klik di sini untuk harga yang bagus 1794-OB16P



Merek / Pabrikan AB / AS
Nomor bagian

1794-OB16P

Nomor Bagian Alternatif 1794-OB16P
Deskripsi SERVO MOTOR
Dimensi

6,0 cm x 15,2 cm x 13,6 cm

Bobot  1,5 kg



Rincian Produk

The AB 1794-OB16P is a FLEX 24 Volts DC Series A digital I/O module. AB 1794-OB16P adalah modul I / O digital FLEX 24 Volts DC Series A. It has 16 source outputs that are non-isolated and protected and has been conformally coated, with 0.5 Amps for each output. Ini memiliki 16 sumber output yang tidak terisolasi dan dilindungi dan telah dilapisi, dengan 0,5 Amps untuk setiap output. It can handle overloads, high temperatures, and shorts because it features self-protection. Ini dapat menangani kelebihan, suhu tinggi, dan celana pendek karena fitur perlindungan diri. Once the problem is solved, the faulted output will return automatically; Setelah masalah terpecahkan, output yang rusak akan kembali secara otomatis; however, feedback to the processor will not. Namun, umpan balik ke prosesor tidak akan. This module can communicate on ControlNet, DeviceNet, PROFIBUS, and EtherNet/IP networks and comes with an RS-232 communication port. Modul ini dapat berkomunikasi pada jaringan ControlNet, DeviceNet, PROFIBUS, dan EtherNet / IP dan dilengkapi dengan port komunikasi RS-232. The 1794-OB16P module uses screw clamp terminations and it can only be mounted on a DIN rail and only use the following terminal base units: the 1794-TB3, 1794-TB3K, 1794-TB2, 1794-TBN, 1794-TBNK, 1794-TB3S, and the 1794-TB3SK. Modul 1794-OB16P menggunakan terminasi sekrup penjepit dan hanya dapat dipasang pada rel DIN dan hanya menggunakan unit pangkalan terminal berikut: 1794-TB3, 1794-TB3K, 1794-TB2, 1794-TBN, 1794-TBNK, 1794 -TB3S, dan 1794-TB3SK.



It has an external DC supply voltage range of 10 to 31.2 Volts DC, with the 5% AC ripple included, and an external DC supply current range of 25 to 75 mA. Ia memiliki kisaran tegangan suplai DC eksternal 10 hingga 31,2 Volt DC, dengan riak AC 5% termasuk, dan kisaran arus suplai DC eksternal 25 hingga 75 mA. The 1794-OB16P's on-state voltage range is also 10 to 31.2 Volts DC. Rentang tegangan on-state 1794-OB16P juga 10 hingga 31,2 Volt DC. Its on-state output voltage drop is 0.5 Volts DC. Penurunan tegangan output on-state adalah 0,5 Volt DC. The minimum current on-state output is 1 mA per channel and the maximum is 500 mA per channel or 8 Amps per module. Output pada keadaan minimum saat ini adalah 1 mA per saluran dan maksimum adalah 500 mA per saluran atau 8 Amps per modul. This module also has a leakage current of 0.5 mA for off-state output and a maximum output surge current of 1.5 Amps for 50 milliseconds that is repeatable every 2 seconds. Modul ini juga memiliki arus bocor 0,5 mA untuk output off-state dan arus lonjakan output maksimum 1,5 Amps selama 50 milidetik yang dapat diulang setiap 2 detik. Note that this module does not have any isolation between the individual channels. Perhatikan bahwa modul ini tidak memiliki isolasi antara saluran individu.

1794-OB16P 1794OB16P Allen Bradley Flex I / O Digital DC Output Modul 0



Layanan kami

100% penuh Baru - Segel Asli Pabrik

Garansi: 12 bulan

Paket: Kemasan asli dengan karton

Waktu pengiriman: Dikirim dalam 3 hari setelah pembayaran

1794-OB16P 1794OB16P Allen Bradley Flex I / O Digital DC Output Modul 1
