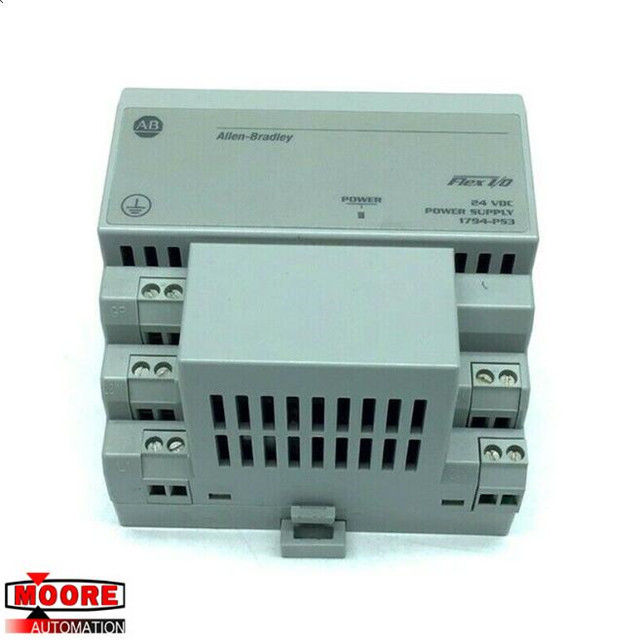

1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel
  • 1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel
  • 1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel

1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel

Tempat asal Amerika Serikat
Nama merek AB
Sertifikasi CO.CQ
Nomor model 1794-PS3
Rincian Produk
Tahun pembuatan:
2020
Con 6DS1311-8AEtrol System:
1794-PS3
Aplikasi:
Pembangkit listrik tenaga nuklir
Lead time:
persediaan
Deskripsi:
AB
Bobot:
£ 4
Cahaya Tinggi:

allen bradley modul io

,

modul allen bradley plc

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1
Harga
inquiry
Kemasan rincian
baru dan asli dengan pabrik disegel
Waktu pengiriman
hari ini
Syarat-syarat pembayaran
T / T
Menyediakan kemampuan
10 potong sehari
Deskripsi Produk



1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel



⇒ Klik di sini untuk harga yang bagus 1794-PS3



Merek / Pabrikan AB / AS
Nomor bagian

1794-PS3

Nomor Bagian Alternatif 1794-PS3
Deskripsi SERVO MOTOR
Dimensi

13.5x13.2x9.2cm

Bobot   0,5 kg



Rincian Produk

The AB 1794-PS3 is a FLEX I/O DC power supply module. AB 1794-PS3 adalah modul catu daya FLEX I / O DC. It can provide up to 10 adapter modules with 24 Volts DC power. Ini dapat menyediakan hingga 10 modul adaptor dengan daya 24 Volt DC. Users can also use the 1794-PS3 module to provide power to an entire FLEX I/O system. Pengguna juga dapat menggunakan modul 1794-PS3 untuk memberikan daya ke seluruh sistem I / O FLEX. This module can convert 120 or 230 Volts AC to 24 Volts DC at 3 Amps when it is mounted horizontally or at 2.8 Amps when mounted vertically. Modul ini dapat mengubah 120 atau 230 Volt AC menjadi 24 Volt DC pada 3 Amps ketika dipasang secara horizontal atau pada 2,8 Amps ketika dipasang secara vertikal. Note that either 3 Amps or 2.8 Amps is the module's maximum output current, depending on its mounting. Perhatikan bahwa 3 Amps atau 2.8 Amps adalah arus keluaran maksimum modul, tergantung pada pemasangannya. The entire module measures 3.7 x 2.7 x 3.4 inches. Seluruh modul berukuran 3,7 x 2,7 x 3,4 inci. It uses an open-style enclosure and can be mounted horizontally or vertically using a DIN rail or panel mount. Ini menggunakan kandang bergaya terbuka dan dapat dipasang secara horizontal atau vertikal menggunakan rel DIN atau dudukan panel. It requires an isolation between the DC output terminals and AC input terminals. Dibutuhkan isolasi antara terminal output DC dan terminal input AC.



The nominal power supply input voltage of this module is 120 to 230 Volts AC, 47 to 63 Hertz, and 1.4 Amps (for 120 Volts AC) or 0.8 Amps (for 230 Volts AC), while its nominal output voltage is 24 Volts DC. Tegangan input catu daya nominal modul ini adalah 120 hingga 230 Volt AC, 47 hingga 63 Hertz, dan 1,4 Amps (untuk 120 Volt AC) atau 0,8 Amps (untuk AC 230 Volt), sedangkan tegangan output nominalnya adalah 24 Volt DC. It also has a power supply input power of 86 W, a maximum apparent input power of 205 VA, and a maximum transformer load of 250 VA. Ia juga memiliki daya input catu daya 86 W, daya input semu maksimum 205 VA, dan beban trafo maksimum 250 VA. The maximum input current of this module is 1.9 Amps, minimum load is 50 mA, output power is 72 W, and output ripple is a maximum of +/-5% 1200mV peak-to-peak. Arus input maksimum dari modul ini adalah 1,9 Amps, beban minimum adalah 50 mA, daya output adalah 72 W, dan riak keluaran maksimum +/- 5% 1200mV puncak ke puncak. The 1794-PS3 module also has a leakage current of a maximum of 0.5 mA RMS at the rated input and output and an overcurrent protection of up to 3.2 Amps. Modul 1794-PS3 juga memiliki arus bocor maksimum 0,5 mA RMS pada input dan output terukur dan perlindungan arus lebih hingga 3,2 Amps. Its power dissipation is 12 W while its thermal dissipation is 41 BTU/hour. Disipasi dayanya 12 W sedangkan disipasi termal 41 BTU / jam.

1794-PS3 1794PS3 Allen Bradley AB Catu Daya Fleksibel 0
