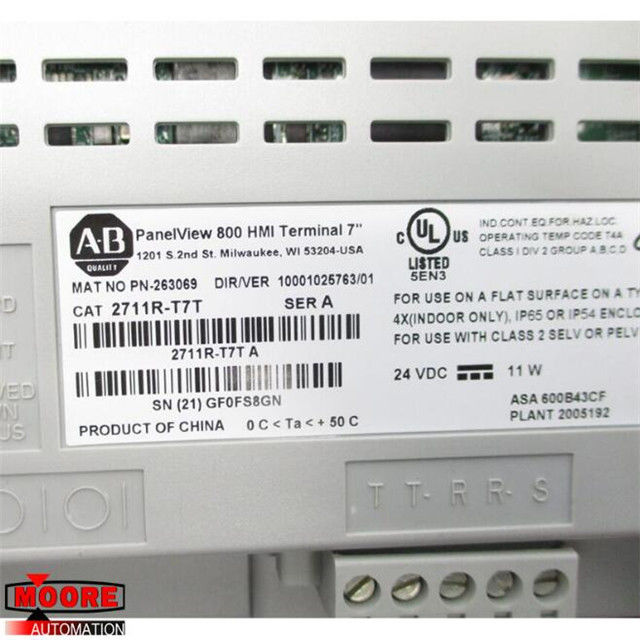

2711R-T7T 2711RT7T Allen Bradley AB PANELVIEW 800 7-INCH HMI TERMINAL
⇒ Klik di sini untuk harga yang bagus 2711R-T7T
Merek / Pabrikan | AB / AS |
Nomor bagian |
2711R-T7T |
Nomor Bagian Alternatif | 2711R-T7T |
Deskripsi | SERVO MOTOR |
Dimensi |
39x24.5x8cm |
Bobot | 1,16 kg |
Rincian Produk
The AB 2711R-T7T is a PanelView 800 HMI terminal featuring a colored touchscreen display. AB 2711R-T7T adalah terminal PanelView 800 HMI yang menampilkan tampilan layar sentuh berwarna. It is primarily used to monitor and control devices that are connected to a controller. Ini terutama digunakan untuk memonitor dan mengontrol perangkat yang terhubung ke controller. The color transmissive TFT matrix LCD touchscreen measures 7 inches, has 65K colors and has a WVGA resolution of 800 x 480. It is in a widescreen format with a display area of 6.05 x 3.41 inches. Layar sentuh TFT LCD warna matriks transmisif berukuran 7 inci, memiliki 65 ribu warna dan resolusi WVGA 800 x 480. Format layar lebar dengan area tampilan 6,05 x 3,41 inci. It also has an LED backlight and the display has a minimum lifespan of 40,000 hours, or 5 years, at 25 degrees Celsius. Ini juga memiliki lampu latar LED dan layar memiliki umur minimum 40.000 jam, atau 5 tahun, pada 25 derajat Celcius. The terminal comes with a 256 MB internal storage and a 256 MB DDR RAM, and the processor has an 800 MHz CPU speed. Terminal ini dilengkapi dengan penyimpanan internal 256 MB dan RAM DDR 256 MB, dan prosesor memiliki kecepatan CPU 800 MHz. The 2711R-T7T has a resistive touch input type and comes with a microSD slot for additional memory. 2711R-T7T memiliki tipe input sentuh resistif dan dilengkapi dengan slot microSD untuk memori tambahan. If users plan to use a microSD card, make sure to use industrial grade cards. Jika pengguna berencana menggunakan kartu microSD, pastikan untuk menggunakan kartu kelas industri. It is compatible with Class 10 SDHC microSD cards of up to 32 GB. Ini kompatibel dengan kartu microSD SDHC Kelas 10 hingga 32 GB. The terminal's USB 2.0 and Ethernet (10/100 Mbps) ports allow users to connect to different networks. Port USB 2.0 dan Ethernet (10/100 Mbps) terminal memungkinkan pengguna untuk terhubung ke jaringan yang berbeda. This terminal also has separate RS-232 and RS-422/RS-485 connectors as well as a real-time clock with a battery included. Terminal ini juga memiliki konektor RS-232 dan RS-422 / RS-485 terpisah serta jam waktu nyata dengan baterai. The 2711R-T7T measures 5.67 x 7.75 x 2.13 inches and weighs 0.651 kilograms or 1.44 pounds. The 2711R-T7T mengukur 5,67 x 7,75 x 2,13 inci dan berat 0,651 kilogram atau 1,44 pound.
The 2711R-T7T terminal is optimized to be compatible with the MicroLogix, Micro800, and CompactLogix 5370 (except for CompactLogix 5370-L37) controllers. Terminal 2711R-T7T dioptimalkan agar kompatibel dengan pengontrol MicroLogix, Micro800, dan CompactLogix 5370 (kecuali untuk CompactLogix 5370-L37). Users can configure this HMI terminal using the Connected Components Workbench software, version 8.0 and later, and it is compatible with the Microsoft Windows CE 6.0 operating system. Pengguna dapat mengkonfigurasi terminal HMI ini menggunakan perangkat lunak Connected Components Workbench, versi 8.0 dan yang lebih baru, dan ini kompatibel dengan sistem operasi Microsoft Windows CE 6.0. The terminal displays alarm messages with embedded variables and it also has uploading and downloading capabilities for data or parameter settings with recipe capability. Terminal menampilkan pesan alarm dengan variabel tertanam dan terminal juga memiliki kemampuan mengunggah dan mengunduh untuk pengaturan data atau parameter dengan kemampuan resep. Fifty recipe files are present with this terminal. Lima puluh file resep hadir dengan terminal ini. The nominal input voltage of the 2711R-T7T is 24 Volts DC while its input voltage range is from 18 to 32 Volts DC. Tegangan input nominal 2711R-T7T adalah 24 Volt DC sedangkan kisaran tegangan inputnya adalah 18 hingga 32 Volt DC. It also has a maximum power consumption of 11 Watts or 0.40 Amps at 24 Volts DC and a heat dissipation of 34 BTU/hour. Ini juga memiliki konsumsi daya maksimum 11 Watt atau 0,40 Amps pada 24 Volt DC dan pembuangan panas 34 BTU / jam. Note that it requires that the environment's ambient temperature fall within a range of 0 to 50 degrees Celsius. Perhatikan bahwa ini mensyaratkan bahwa suhu lingkungan turun dalam kisaran 0 hingga 50 derajat Celcius. The terminal's operating temperature ranges from 0 to 50 degrees Celsius and its non-operating temperature range is from -25 to 75 degrees Celsius. Temperatur operasi terminal berkisar dari 0 hingga 50 derajat Celcius dan kisaran suhu non-operasinya adalah dari -25 hingga 75 derajat Celcius. It also has an operating vibration of 2 G at 10 to 500 Hertz, an operating shock of 15 G, and non-operating shock of 30 G. Its non-condensing relative humidity is 5 to 95%. Ini juga memiliki getaran operasi 2 G pada 10 hingga 500 Hertz, kejutan operasi 15 G, dan kejutan non-operasi 30 G. Kelembaban relatif non-kondensasi adalah 5 hingga 95%.
